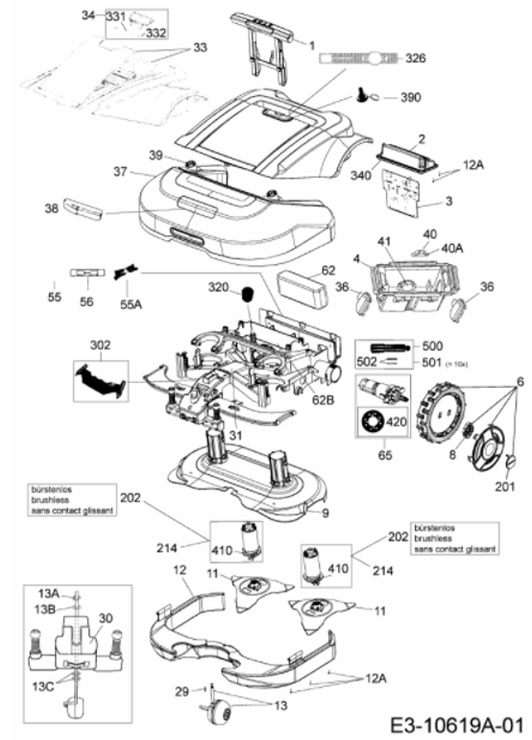

Robomow RS onderdelentekening
Vul in het contactformulier hieronder het gewenste onderdeel in:
| 1 | MSB6310B | 1 | HANDLE / STOP ASSY. | MSB6310B | |
| 2 | MSB6340B | 1 | LCD PANEL ASSY | MSB6340B | |
| 3 | SPP6008A | 1 | RS MAIN BOARD 2014 | SPP6008A | |
| 4 | MSB6320A | 1 | C-BOX ASSY | MSB6320A | |
| 6 | SPP6101A | 2 | RS DRIVE WHEEL + LOCKER | SCHNELLBEFESTIGER | |
| 8 | INJ6160A | 2 | WHEEL LOCK | INJ6160A | |
| 9 | MSB6003B | 1 | DECK ASM-SD:46" | MSB6003B | |
| 11 | MRK6101A-ET | 1 | 2 BLADE KIT | FÜR RS MODELLE | |
| 12 | MSB6004C | 1 | FLOATER ASM. | MSB6004C | |
| 12A | SCR6009A | 24 | EJOT WN 1452 K30 L 12MM | SCR6009A | |
| 13 | MSB6007D | 1 | FRONT WHEEL ASSY 2014 S-MODEL | MSB6007D 2014 | |
| 13A | RNG6010A | 1 | SNAP RING FOR 6MM SHAFT | RNG6010A | |
| 13B | RNG6002A | 1 | WASHER STEEL M6 DIN 125 | RNG6002A | |
| 13C | RNG6007B | 2 | WASHER 8X14X1MM DIN988 | RNG6007B | |
| 29 | MSB6173A | 1 | FRONTWHEEL MAGNET HOLDER ASSY | MSB6173A | |
| 30 | INJ6460A | 1 | LIGHT COVER (COCKPIT) | INJ6460A | |
| 31 | SPP6104A | 1 | RS CHASSIS ASM. | SPP6104A | |
| 33 | MSB6008B | 1 | COVER ASSY GREEN | MSB6008B | |
| 34 | SPP6009A | 1 | KIT DOOR SHUTTER RS | SPP6009A | |
| 36 | INJ6550A | 2 | C-BOX RUBBER DOOR | INJ6550A | |
| 37 | MSB6001A | 1 | BUMPER ASSY BLACK | MSB6001A | |
| 38 | INJ6260A | 1 | LENS LED HEADLIGHT | INJ6260A | |
| 39 | INJ6274A | 4 | BUMPER HANG CAVITY | STOßFÄNGER | |
| 40 | INJ6371A | 1 | SPEAKER HOLDER | INJ6371A | |
| 40A | SCR6005A | 2 | TORX WN1451 K40 L12 | SCR6005A | |
| 41 | BUZ6000G | 1 | PIEZO BUZZER WITH CABLE | BUZ6000G | |
| 55 | SPP6107A | 1 | FUSE THREAD | SPP6107A | |
| 55A | INJ6570A | 1 | FUSE HOLDER | INJ6570A | |
| 56 | FUS6000A | 1 | FUSE 32V/20A FAST ACTING/GLASS | FUS6000A | |
| 62 | MRK6105A-ET | 1 | BATTERY RS | LIFEPO 4.5 AH | |
| 62A | PCK6005A | 1 | POLYSTYRENE 26*77*170 | PCK6005 | |
| 62B | GEN6053B | 1 | BATTERY SHIELD | GEN6053B | |
| 65 | SMSB6206B | 2 | DRIVE MOTOR ASSY S-MODELS | 1800 + 3000 | |
| 201 | INJ6690B | 2 | HUBCAP ROBOMOW | INJ6690B | |
| 202 | SPP6111A | 2 | RS MOWING MOTOR ASS | SPP6111A OHNE BÜRSTEN | |
| 214 | SPP7013A | 2 | MOWING MOTOR | SPP7013A // MSB7002A | |
| 302 | MSB6030A | 1 | RS HEIGHT LIMITER ASSY. | MSB6030A | |
| 320 | INJ6710A | 1 | ADJUSTMENT KNOB | INJ6710A | |
| 326 | STC6003B | 1 | STICKER MOWING HEIGHT | STC6003B | |
| 331 | GEN6012A | 1 | ROD | GEN6012A | |
| 332 | GEN6015A | 2 | EXTENSION SPRING | GEN6015A | |
| 340 | INJ6372A | 1 | MAINBOARD HOUSING GROMMET | INJ6372A | |
| 390 | GEN6041A | 1 | SWITCH RUBBER CUP | GEN6041A | |
| 410 | INJ6020A | 2 | MOWING MOTOR FLANGE | INJ6020A | |
| 420 | INJ6153A | 2 | DRIVE MOTOR FLANGE | INJ6153A | |
| 500 | GEN6069A | 2 | ALUMINIUM DRIVE SPLINE | OHNE SPLINT | |
| 501 | SPP6012B | 1 | DRIVE SPLINE KIT (10 PIECES) | SPP6012B E-TEIL-SET | |
| 502 | GEN6027A | 2 | SHAFT PIN ISO 8748 4MM L22 | ISO 8748 4MM L22 |
RS622, RS625, RS635 hebben brushless maaimotoren artikel SPP6111A
RS615 heeft borstel of borstelloze maaimotoren, te checken, zie hieronder voor het onderscheid:
Bij een borstelloze maaimotor (links hieronder) hangt een kabeltje met connector.
De borstel/brush versie kan zowel zwart zijn zoals hieronder als metaalkleur.
